BSH compliant measuring equipment

Here you will find special measuring equipment and measuring devices that were developed in cooperation with and for B/S/H/ and are described in their internal EMC standard "BSH EMC requirements specification for modules".

HTH (Human Touch Hand)

according BSH EMC requirement

The HTH is a device that simulates a real clenched hand with an extended index finger while operating a touch panel. Both the resistance ratios in the static and in the dynamic range were taken into account

The same applies to the formation of the electrical stray field between the clenched hand and the touch panel due to the spherical basic shape of the HTH and its material. The impedance curve corresponds to a real hand up to approx. 1 GHz and is resonance-free!

A9R1vw0o3y 17qg9xx ak0

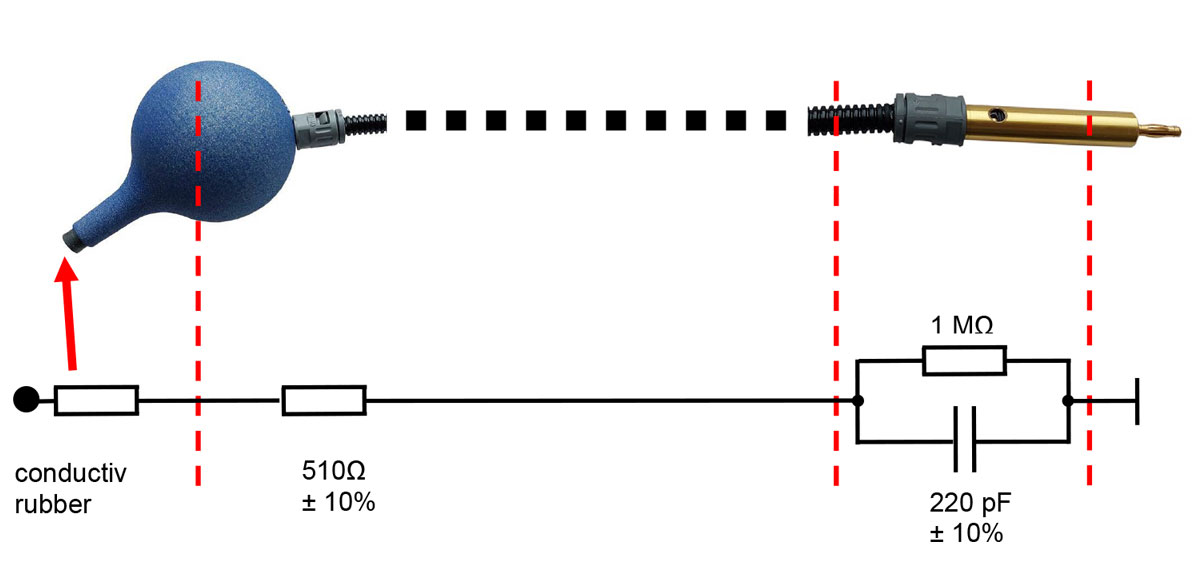

Equivalent circuit diagram: :

grafik 01

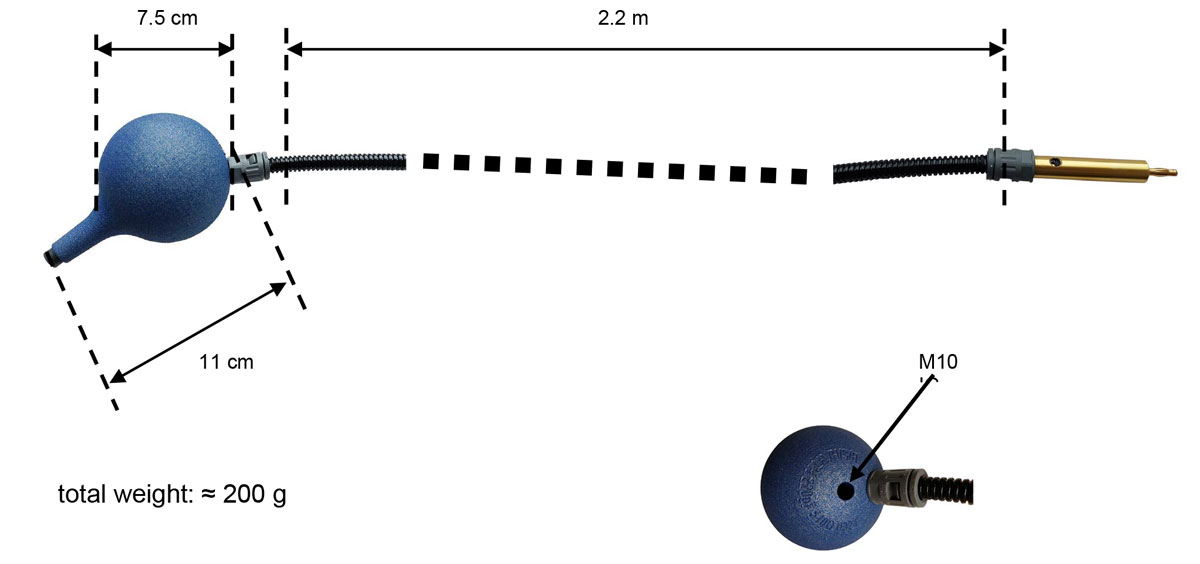

Dimensions and weight:

grafik 02

Application example:

A9R4uueqz 17qg9xz ak0
